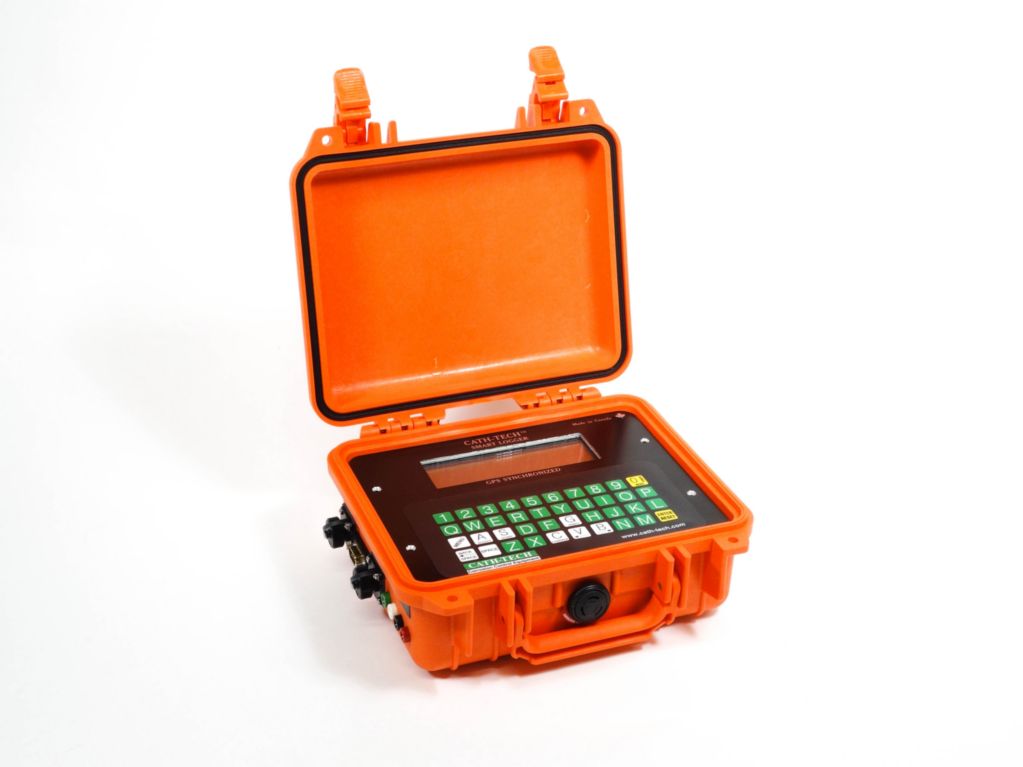

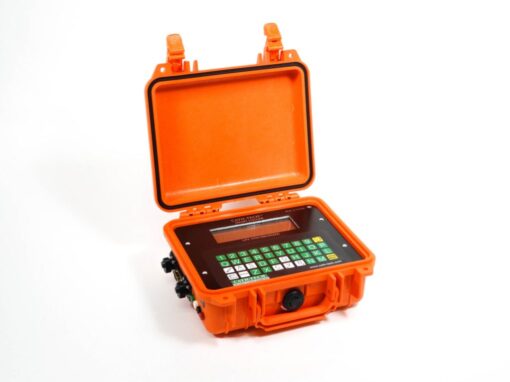

Smart Logger II Dual Input with GPS

Features

• Dual input: pipe to soil and shunt
• Portable and rugged
• GPS synchronization with other survey equipment
• Programmable waveform capture
• Every reading is time stamped
• ASCII comma delimited text file
• No special software required
• Comprehensive 1 year warranty

Category:

Description

Spec Sheet  Manual

Ideal for

• Correction of CIPS data for stray currents
• Correction of CIPS data for tellurics
• Monitor pipe to soil potentials

Included

• Smart Logger II
• Test leads
• GPS magnet mount antenna
• AC charger; 120/240 V AC, 50/60 Hz input
• RS-232 cable
• USB to RS-232 converter
• Owners manual

Technical Specification

• Range – Channel 1: +/- 5 V DC or +/- 25 V DC
• Range – Channel 2: +/- 50 mV
• A/D Converter: 14 bit
• AC Rejection: 100 dB
• Memory Capacity: 1 Mb, expandable to 2Mb
• Input Impedance: 10 M ohm or 250 M ohm
• Case: Plastic with o-ring seal, IP67 rated
• Dimensions: 27cm x 25cm x 13cm (10.5” x 10” x 5”)
• Weight: 3.2 kg (7 lb)
• Battery: 7.2V 4.5 amp hour NiMH

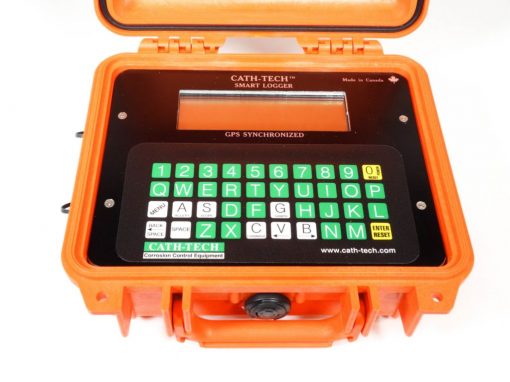

• User interface: 240 x 64 graphic LCD with 40 key QWERTY membrane keypad

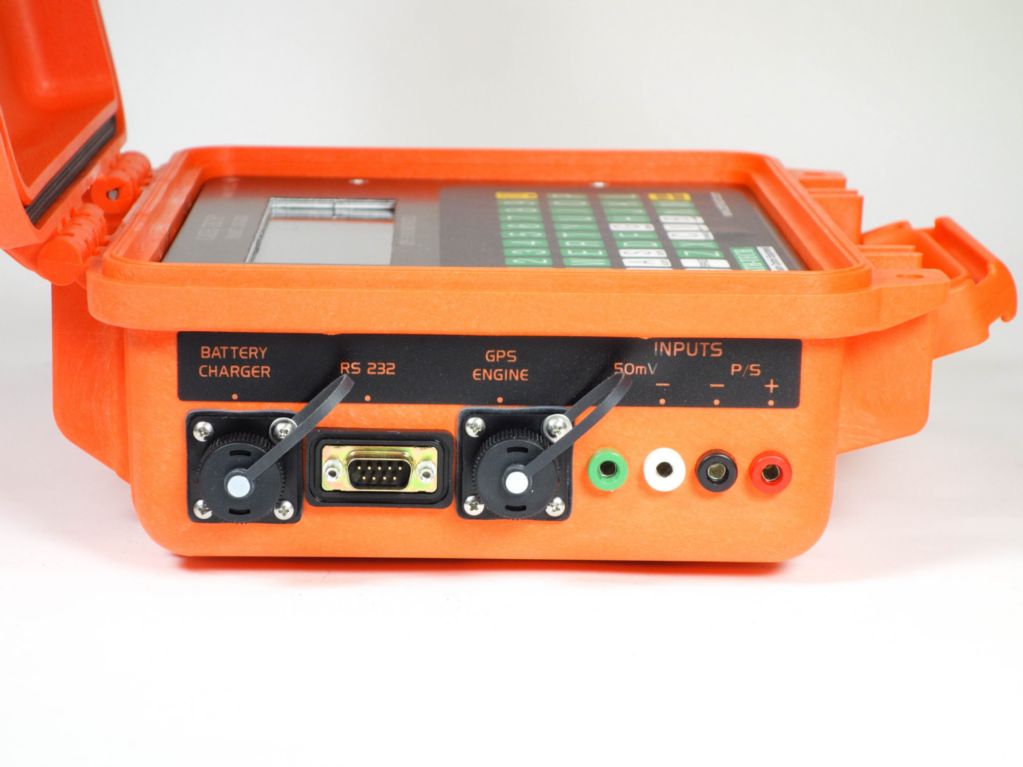

• Communications: RS-232
• GPS synchronized with external antenna
•  Option to log GPS co-ordinates with every reading
